Coil Metal Fiber Laser Cutting Machine
Coil Metal Fiber Laser Cutting Machine

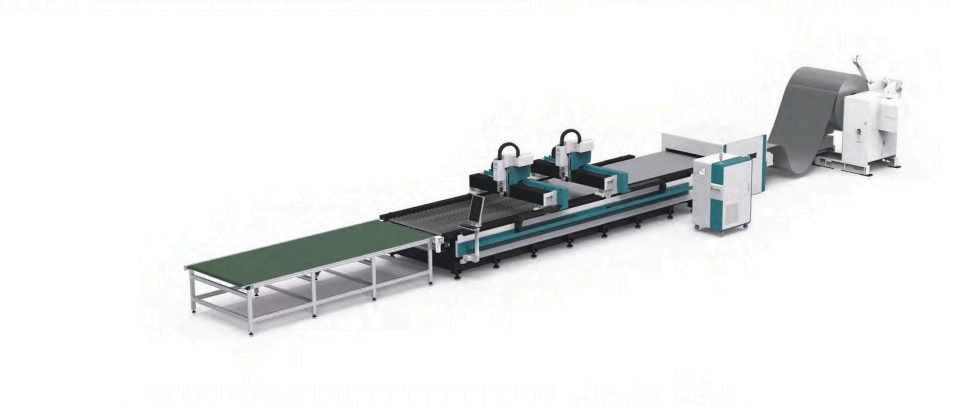

The Coil Metal Fiber Laser Cutting Machine is specially designed for continuous processing of metal coils. It integrates uncoiling, leveling, feeding and laser cutting into one automated production line, ensuring high efficiency and precision. This machine is widely used in sheet metal processing, automotive parts manufacturing and industrial fabrication where large volumes of coil material need to be processed.
Product Name
Coil Metal Fiber Laser Cutting Machine
Machine Model
EWM6015FLD (customizable)
Power of Generator
1000 – 4000 W
X/Y-axis Positioning Accuracy
0.03 mm
X/Y-axis Repositioning Accuracy
0.02 mm
X/Y-axis Max Linkage Speed
140 m/min
Leveling Accuracy
≤ 1.5 mm/m
Processing Plate Thickness
0.8 – 5 mm
Coil Outer Diameter
1200 – 2000 mm
Coil Inner Diameter
508 / 610 mm
Coil Weight
≤ 20 T
Leveling Speed
≤ 20 m/min
