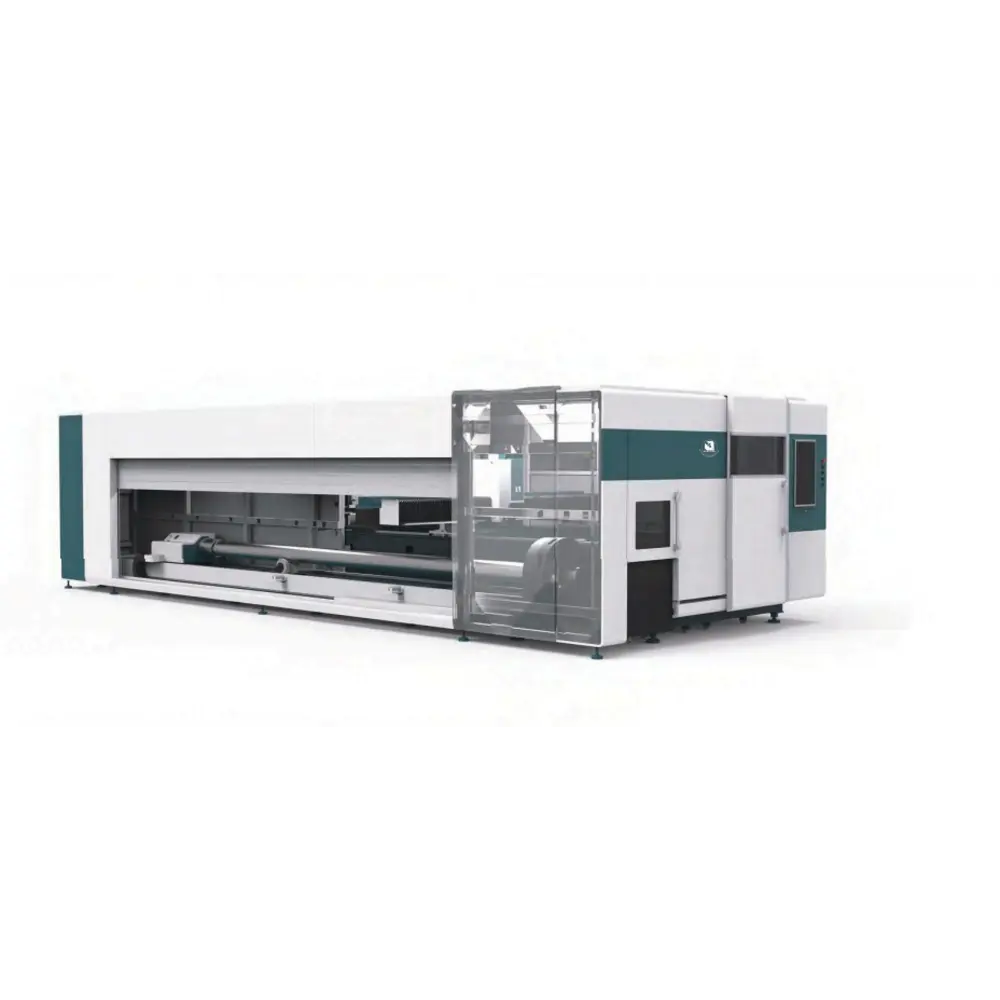

High Power Cover Exchange Table Rotary Fiber Laser Cutting Machine
High Power Cover Exchange Table Rotary Fiber Laser Cutting Machine
The High Power Cover Exchange Table Rotary Fiber Laser Cutting Machine is designed for advanced metal cutting applications. It combines sheet cutting and tube cutting in one powerful machine. With a fully enclosed protective cover and automatic exchange table system, it ensures higher safety, efficiency and precision. This machine is widely used for cutting stainless steel, carbon steel, aluminum and metal tubes in industrial manufacturing and fabrication industries.
Product Name
High Power Cover Exchange Table Rotary Fiber Laser Cutting Machine
Machine Model
EWM3015PFT (4015 / 6015 / 4020 / 6020 / 6025 / 8025 customizable)
Power of Generator
1000 – 30000 W
Dimension
8700 × 3880 × 2175 mm
Clamping Range
Round tube: Ø20 – Ø350 mm
Square tube side length: 20 × 20 – 245 × 245 mm
Repeated Positioning Accuracy
±0.02 mm
Max Running Speed
120 m/min
Max Acceleration
1.5G
Specified Voltage and Frequency
380V / 50-60Hz
