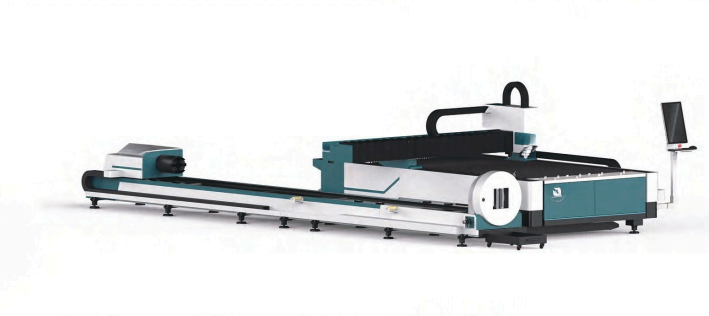

Metal Plate & Rotary Fiber Laser Cutting Machine

Metal Plate & Rotary Fiber Laser Cutting Machine

The Metal Plate & Rotary Fiber Laser Cutting Machine is designed for high-precision cutting of both metal sheets and metal tubes. It can efficiently cut materials such as stainless steel, carbon steel, aluminum and other metals with excellent accuracy. The rotary attachment allows smooth cutting of round and square tubes, making it suitable for industrial manufacturing, metal fabrication and engineering applications.

Product Name

Metal Plate & Rotary Fiber Laser Cutting Machine

Machine Model

EWM3015FCT (4015 / 6015 / 4020 / 6020 / 4025 / 6025 customizable)

Power of Generator

1000 – 12000 W

Dimension

8540 × 4570 × 1990 mm

Clamping Range

Round tube: Ø20 – Ø220 mm
Square tube side length: 20 × 20 – 220 × 220 mm

Repeated Positioning Accuracy

±0.02 mm

Max Running Speed

120 m/min

Max Acceleration

1.5G

Specified Voltage and Frequency

380V / 50-60Hz
